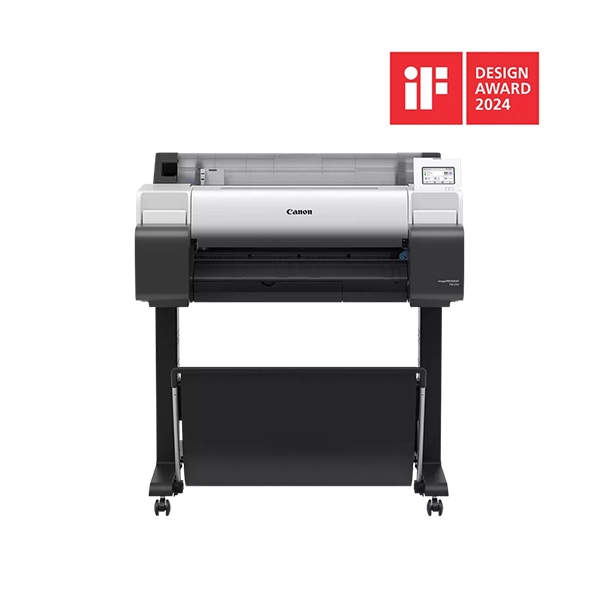

Canon imagePROGRAF TM-240

Specifications

• 5-colour pigment ink

Matt black, black, cyan, yellow and new magenta pigment ink

• 55ml ink tanks

Sufficient volume of ink to support your weekly printing demand

• 4.3” operational panel

Intuitive functionality and useful information display

• Intuitive functionality

Auto detection of media type and remaining amount, easy setup of roll paper.

• Reliable productivity

Faster processing time and a quick return from sleep mode

• Enhanced professional print quality

Delivers sharp, precise lines for CAD drawings and eye-catching colour output for posters

• Free size borderless printing

Save your time in trimming excessive margins for poster and collaterals

• EPEAT Gold rating*

Low energy consumption, polystyrene-free packaging and less noise operation

*EPEAT Gold registered in the U.S.

Specifications in detail

Printer Technology

• Printer Type

5 Colours 24″

• Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

• Print Resolution

2,400 x 1,200 dpi

• Number of Nozzles

Total: 15360 nozzles
MBK: 5120 nozzles
BK, C, M, Y: 2560 nozzles each

• Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.

• Nozzle Pitch

1,200 dpi x 2 lines

• Ink Droplet Size

minimum 5pl per colour

• Ink Capacity

Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y)
Sales Ink: 55ml (MBK, BK, C, M, Y)

• Ink Type

Pigment inks: 5 colours MBK/BK/C/M/Y

• OS Compatibility

32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7～macOS 13

• Other Supported Job Submission Protocols

Apple AirPrint

• Printer Languages

HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

• Standard Interfaces

USB A Port: N/A
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

*Please refer to user manual how to activate/deactivate the wireless LAN

Memory

• Standard Memory

2GB
Expansion slot: No

• Hard Drive

N/A

Print Speed

• CAD Drawing

Plain Paper (A1):
0:23 (Fast Economy Mode)
0:25 (Fast)
0:51 (Standard)

• Poster

Plain Paper (A1)
0:25 (Fast Economy Mode)
0:25 (Fast)
0:49 (Standard)

Heavy Coated Paper (A1)
0:56 (Fast)
1:45 (Standard)

Media Handling

• Media Feed and Output

Roll Paper: One Roll, Upper-loading, Front Output
Cut Sheet: Upper-loading, Front Output (Manual feed using media locking lever)

• Media Width

Roll paper: 203.2 – 610mm
Cut sheet: 210 – 610mm

• Media Thickness

Roll/Cut: 0.07mm – 0.8mm

• Minimum Printable Length

Roll paper: 203.2mm
Cut sheet: 279.4mm

• Maximum Printable Length

Roll paper: 18m (varies according to the OS and application)
Cut sheet: 1.6m

• Maximum Media Roll Diameter

150mm

• Media Core Size

Internal diameter of roll core: 2″/3″ (Optional)

• Margins Recommended Area

Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom: 20mm, Side: 3mm

• Margins Printable Area

Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

• Media Feed Capacity

Roll Paper: One roll
Cut Sheet: 1 sheet

• Borderless Printing Width (Roll Only)

[Recommended]515mm(JIS B2), 594mm (ISO A1), 10″, 14″, 17″, 24″
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8″, 12″, 15″, 16″, 18″, 20″, 22″, 300mm, 500mm, 600mm
Other than above, free size borderless printing is supported on only roll paper by user definition

• Maximum Number of Delivered Prints

Standard position – 1 sheet

Power and Operating Requirements

• Power Supply

AC 100-240V (50-60Hz)

• Power Consumption

Operation: 59W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less

• Operating Environment

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

• Acoustic Noise (Power/Pressure)

Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)

Standby: 35 dB(A) or less

Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)

• Regulations

CE mark, UKCA mark

• Environment Certificates

CB certfication, EPEAT GOLD¹

Dimensions and Weight

• Physical Dimensions and Weight

W x D x H
Main unit + Stand + Basket (SD-24)
978 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened)
978 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed)
50.9 kg (including Roll Holder Set, excluding ink and print head)

• Packaged Dimensions and Weight

Printer (Main unit with pallet): 1152 x 912 x 679 mm, 71kg
Stand + Basket (SD-24): 1058 x 826 x 270 mm, 20kg

What’s Included

• What’s in the Box?

Printer, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Notice for PosterArtist WEB

• Software Included

Software available as Download from Web

Options

• Optional Items

Stand Basket (Simple Basket): SD-24
2″/3″ Roll Holder: RH2-28
IC Card Reader Holder: RA-02

Consumables

• User Replaceable Items

Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y: PFI-030(55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
