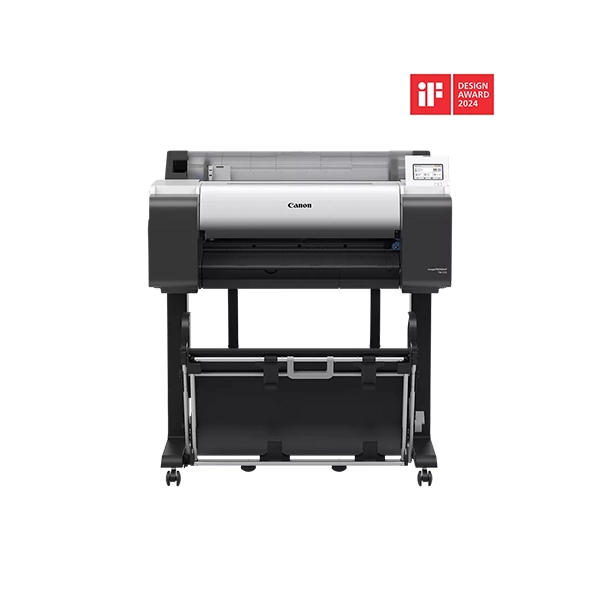

Canon imagePROGRAF TM-255

Specifications

• 5-colour pigment ink

Matt black, black, cyan, yellow and new magenta pigment ink

• 300ml/130ml ink tanks

Bigger ink tanks to support your daily printing demand

• 4.3” operating panel

Intuitive functionality and useful information display

• Intuitive functionality

Auto detection of media type and remaining amount, easy to set up roll paper with flat top cover

• Enhanced productivity

Fast printing speed, quick return from sleep mode and larger ink tanks

• Security

Encrypted 500GB hard disk drive enables secure erasure, supports PIN code printing

• Professional print quality

Deliver sharp, precise lines for CAD/GIS drawings and eye-catching colour for posters and marketing materials

• Free size borderless printing

Save time in trimming excessive margins for poster and collaterals

• EPEAT Gold rating*

Packaging free from polystyrene foam, less noise printing and low energy consumption

*EPEAT Gold registered in the U.S

Specifications in detail

Printer Technology

• Printer Type

5 Colours 24″

• Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

• Print Resolution

2,400 x 1,200 dpi

• Number of Nozzles

Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each

• Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.

• Nozzle Pitch

1,200 dpi x 2 lines

• Ink Droplet Size

minimum 5pl per colour

• Ink Capacity

Bundled Starter Ink: 490ml (130ml for MBK, 90mlx4 for BK, C, M, Y)
Sales Ink: 300 / 130ml (MBK, BK, C, M, Y)

• Ink Type

Pigment inks : 5 colours MBK/BK/C/M/Y

• OS Compatibility

32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7～macOS 13

• Other Supported Job Submission Protocols

Apple AirPrint

• Printer Languages

HP-GL/2, HP RTL, PDF (Ver. 1.7), JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

• Standard Interfaces

USB A Port: USB Memory (Direct Print)
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

*Please refer to user manual how to activate/deactivate the wireless LAN

Memory

• Standard Memory

128GB (Physcial memory 2GB)
Expansion slot : No

• Hard Drive

500GB (Encrypted)

Print Speed

• CAD Drawing

Plain paper (A1)
0:20 (Fast Economy Model)
0:23 (Fast)
0:40 (Standard)

• Poster

Plain paper (A1)
0:22 (Fast Economy Model)
0:25 (Fast)
0:44 (Standard)

Heavy coated paper (A1)
0:55 (Fast)
1:23 (Standard)

Media Handling

• Media Feed and Output

Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)

• Media Width

Roll paper: 203.2 – 610mm
Cut sheet: 203.2 – 610mm

• Media Thickness

Roll/Cut : 0.07mm – 0.8mm

• Minimum Printable Length

Roll paper: 203.2mm
Cut sheet: 279.4mm

• Maximum Printable Length

Roll paper : 18m (varies according to the OS and application)
Cut sheet : 1.6m

• Maximum Media Roll Diameter

150mm

• Media Core Size

Internal diameter of roll core: 2″/3″

• Margins Recommended Area

Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm

• Margins Printable Area

Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

• Media Feed Capacity

Roll Paper: One roll
Cut Sheet: 1 sheet

• Media Take-Up Roll Unit

N/A

• Borderless Printing Width (Roll Only)

[Recommended]515mm(JIS B2), 594mm (ISO A1), 10″, 14″, 17″, 24″
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8″, 12″, 15″, 16″, 18″, 20″, 22″, 300mm, 500mm, 600mm
Other than above, free size borderless printing is supported on only roll paper by user definition

• Maximum Number of Delivered Prints

Standard position: 1 sheet
Folding position: Plain paper 20 sheets on A1 portrait
Flat position: Plain paper 20 sheets on A2 landscape (exclude strong curled position)

Power and Operating Requirements

• Power Supply

AC 100-240V (50-60Hz)

• Power Consumption

Operation: 64W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less

• Operating Environment

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

• Acoustic Noise (Power/Pressure)

Operation: Approx. 41dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)
Standby: 35 dB(A) or less
Operation: 6.2 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode) (Measured based on ISO7779 standard)

• Regulations

CE mark, UKCA mark

• Environment Certificates

CB certfication, EPEAT GOLD¹

Dimensions and Weight

• Physical Dimensions and Weight

W x D x H
Main unit with stand
978 x 885 x 1060mm (Operation panel is not tilted up/Basket Opened)
978 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed)
54.5 kg (including Roll Holder Set, excluding ink and print head)

• Packaged Dimensions and Weight

Printer (Main unit with stand and pallet): 1152 x 913 x 946 mm, 96kg

What’s Included

• What’s in the Box?

Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Stack Printer Stand Setup Guide, Notice for PosterArtist WEB

• Software Included

Software available as Download from Web

Options

• Optional Items

2″/3″ Roll Holder: RH2-28
IC Card Reader Holder: RA-02

Consumables

• User Replaceable Items

• Print Head: PF-06
  Cutter Blade: CT-08
  Maintenance Cartridge: MC-31
