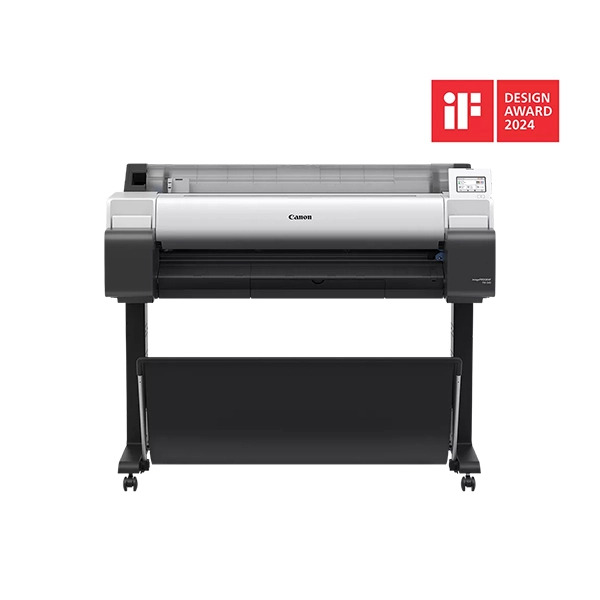

Canon imagePROGRAF TM-340

Specifications

• 5-colour pigment ink

Matt black, black, cyan, yellow and new magenta pigment ink

• 55ml ink tanks

Sufficient volume of ink to support your weekly printing demand

• 4.3” operational panel

Intuitive functionality and useful information display

• Intuitive functionality

Auto detection of media type and remaining amount, easy setup of roll paper

• Reliable productivity

Faster processing time and a quick return from sleep mode

• Enhanced professional print quality.

Delivers sharp, precise lines for CAD drawings and eye-catching colour output for posters

• Free size borderless printing

Save your time in trimming excessive margins for poster and collaterals

• EPEAT Gold rating¹

Low energy consumption, polystyrene-free packaging and less noise operation

Specifications in detail

Printer Technology

• Printer Type

5 Colours 36″

• Print Technology

Canon Bubblejet on Demand 6 colours integrated type (6 chips per print head x 1 print head)

• Print Resolution

2,400 x 1,200 dpi

• Number of Nozzles

Total : 15360 nozzles MBK : 5120 nozzles BK, C, M, Y: 2560 nozzles each

• Line Accuracy

±0.1% or less
User adjustments necessary. Printing environment and media must match those used for the adjustments.

• Nozzle Pitch

1,200 dpi x 2 lines

• Ink Droplet Size

minimum 5pl per colour

• Ink Capacity

Bundled Starter Ink: 300ml (80ml for MBK, 55mlx4 for BK, C, M, Y) Sales Ink: 55ml (MBK, BK, C, M, Y)

• Ink Type

Pigment inks : 5 colours MBK/BK/C/M/Y

• OS Compatibility

32 Bit: Windows7, Windows 8.1, Windows 10
64 Bit: Windows 7, Windows 8.1, Windows 10, Windows 11, Windows Server 2008R2, 2012, 2012R2, 2016, 2019, 2022
Apple Macintosh: macOS 10.15.7～macOS 13

• Other Supported Job Submission Protocols

Apple AirPrint

• Printer Languages

HP-GL/2, HP RTL, JPEG (Ver. JFIF 1.02), CALS G4 (submission via FTP only)

• Standard Interfaces

USB A Port: N/A
USB B Port: Hi-Speed USB
Ethernet: IEEE802.3ab(1000base-T), IEEE802.3u(100BASE-TX)/IEEE802.3 (10BASE-T)
Wireless LAN: IEEE802.11n/IEEE802.11g/IEEE802.11b

*Please refer to user manual how to activate/deactivate the wireless LAN

Memory

• Standard Memory

2GB
Expansion slot : No

• Hard Drive

N/A

Print Speed

• CAD Drawing

Plain paper (A1)
0:21 (Fast Economy Mode) 2.7ppm

Plain paper (A0)
0:41 (Fast Economy Mode)
0:42 (Fast)
1:25 (Standard)

• Poster

Plain paper (A0)
0:43 (Fast Economy Mode)
0:43 (Fast)
1:25 (Standard)

Heavy coated paper (A0)
1:42 (Fast)
3:10 (Standard)

Media Handling

• Media Feed and Output

Roll Paper : One Roll, Upper-loading, Front Output
Cut Sheet : Upper-loading, Front Output (Manual feed using media locking lever)

• Media Width

Roll paper: 203.2 – 917mm
Cut sheet: 210 – 917mm

• Media Thickness

Roll/Cut : 0.07mm – 0.8mm

• Minimum Printable Length

Roll paper: 203.2mm
Cut sheet: 279.4mm

• Maximum Printable Length

Roll paper : 18m (varies according to the OS and application)
Cut sheet : 1.6m

• Maximum Media Roll Diameter

150mm

• Media Core Size

Internal diameter of roll core: 2″/3″ (Optional)

• Margins Recommended Area

Roll paper: Top: 20mm, Bottom: 3mm, Side: 3mm
Cut sheet (AppleAirPrint): Top: 20mm, Bottom: 31mm, Side: 3mm
Cut sheet (Others): Top: 20mm, Bottom:20mm, Side:3mm

• Margins Printable Area

Roll paper: Top: 3mm, Bottom: 3mm, Side: 3mm
Roll paper (borderless): Top: 0mm, Bottom: 0mm, Side: 0mm
Cut sheet (AppleAirPrint): Top: 3mm, Bottom: 12.7mm, Side: 3mm
Cut sheet (Others): Top: 3mm, Bottom: 20mm, Side: 3mm

• Media Feed Capacity

Roll Paper: One roll
Cut Sheet: 1 sheet

• Borderless Printing Width (Roll Only)

[Recommended]515mm(JIS B2), 728mm(JIS B1), 594mm(ISO A1), 841mm(ISO A0), 10″, 14″, 17″, 24″, 36″
[Printable]257mm(JIS B4), 297mm(ISO A3), 329mm(ISO A3+), 420mm(ISO A2), 515mm(JIS B3), 8″, 12″, 15″, 16″, 18″, 20″, 22″, 30″, 34″, 300mm, 500mm, 600mm, 800mm
Other than above, free size borderless printing is supported on only roll paper by user definition

• Maximum Number of Delivered Prints

Standard position – 1 sheet

Power and Operating Requirements

• Power Supply

AC 100-240V (50-60Hz)

• Power Consumption

Operation: 65W or less
Sleep mode: 2.2W or less
Default setting for the time to enter the Sleep mode: Approx. 5 minutes
Power off: 0.1W or less

• Operating Environment

Temperature: 15~30℃, Humidity: 10~80% RH (no dew condensation)

• Acoustic Noise (Power/Pressure)

Operation: Approx. 39dB(A) (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)

Standby: 35 dB(A) or less

Operation: 6.0 Bels or less (Standard Plain Paper, Standard mode, Line Drawing/Text mode)
(Measured based on ISO7779 standard)

• Regulations

CE mark, UKCA mark

• Environment Certificates

CB certfication, EPEAT GOLD¹

Dimensions and Weight

• Physical Dimensions and Weight

W x D x H
Main unit with stand
1285 x 868 x 1060 mm (Operation panel is not tilted up/Basket Opened）
1285 x 756 x 1060 mm (Operation panel is not tilted up/Basket Closed）
59.2 kg (including Roll Holder Set, excluding ink and print head)

• Packaged Dimensions and Weight

Printer (Main unit with stand and pallet): 1462 x 912 x 801 mm, 100kg

What’s Included

• What’s in the Box?

Printer, Printer Stand, 1 Print head, Power Cable, 1 Set of starter ink tanks, Installation Guide, Safety/Standard Environment leaflet, LFP Eur Address Sheet, Important Information Sheet, Basic Printer Stand Setup Guide, Notice for PosterArtist WEB

• Software Included

Software available as Download from Web

Options

• Optional Items

2″/3″ Roll Holder: RH2-35
IC Card Reader Holder: RA-02

Consumables

• User Replaceable Items

Ink Tank: M: PFI-031(55ml), MBK/BK/C/Y:PFI-030(55ml)
Print Head: PF-06
Cutter Blade: CT-08
Maintenance Cartridge: MC-31
