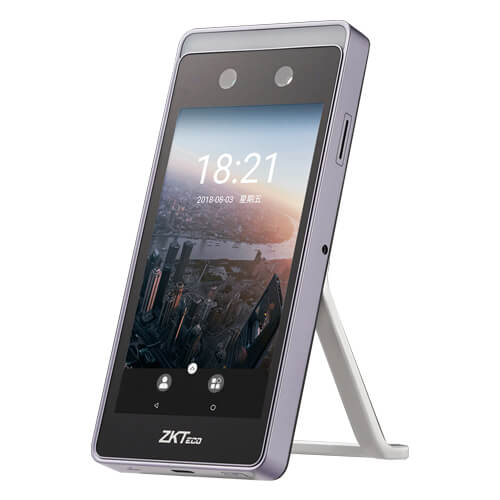

Horus

Horus

• Model

Horus E1
Horus E1-RFID
Horus E1-FP

• Android Version

Android 8.1

• CPU

Quad-core, 1.5GHz

• Memory

RAM 2GB / ROM 16GB

• Camera

2MP Dual Camera

• LCD

720 * 1280, IPS touch LCD

• Verification Mode

Horus E1: Face
Horus E1-RFID: Face + RFID
Horus E1-FP: Face + Fingerprint + RFID

• Face Capacity

6,000 / 10,000 (Optional)

• Fingerprint Capacity

Horus E1: N / A
Horus E1-RFID: N / A
Horus E1-FP: 6,000 / 10,000 (Optional)

• ID Card / MF Card

Horus E1: N / A
Horus E1-RFID: 10,000
Horus E1-FP : 10,000

• Access Control (DM10 Module)

Horus E1: N / A
Horus E1-RFID: Optional
Horus E1-FP: Optional

• TCP/IP

Horus E1: N / A
Horus E1-RFID: 10 / 100 Mbps
Horus E1-FP: 10 / 100 Mbps

• Wi-Fi

2.4GHz, 5GHz, 802.11a / b / g / n

• Bluetooth

4.0

• 4G Wireless Broadband

GSM: B2 / B3 / B5 / B8
WCDMA: B1 / B2 / B4 / B5 / B8
TDD-LTE: B38 / B40 / B41M
FDD-LTE: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B’

• Speaker

90DB (10cm distance)

• Microphone

1m clear voice pickup

• Dimensions (H*W*D)

Horus E1: 158 * 74 * 15.6mm
Horus E1-RFID: 205.33 * 74 * 17.7 mm
Horus E1-FP: 205.33 * 74 * 17.7 mm

• Power

12V 2A

• Operating Temperature

0°C~50°C

• Operating Humidity

20% – 80%RH

• Certifications

CE, FCC, RoHS
