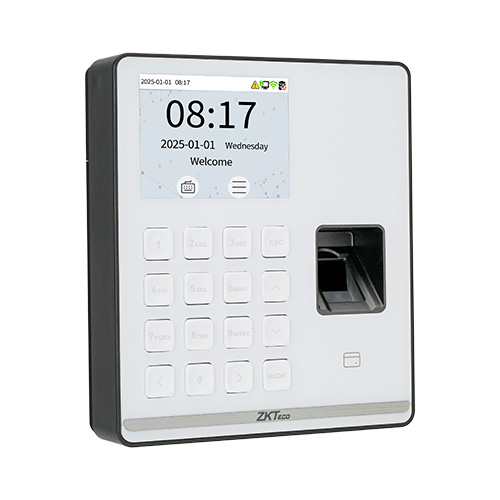

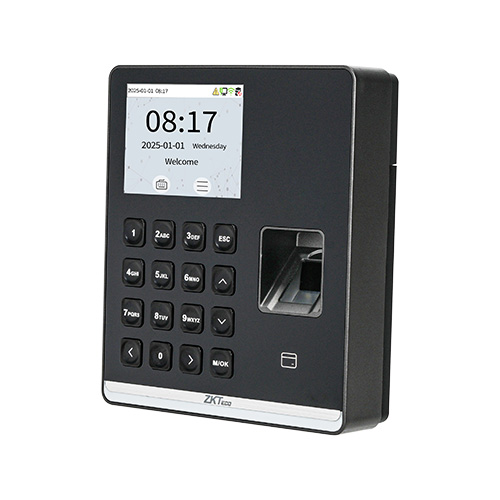

SenseFP M1

SenseFP M1

Parameters

• Model

SenseFP M1

• Display

2.8″@ TFT Color LCD Screen (320*240)

• Operation System

Linux

• Hardware

RAM: 8MB; ROM: 16MB
Speaker: 8ohm @1W
Physical Keypad: 16 Keys
Fingerprint Sensor: ZK Optical Sensor
Casing Color: Black and White

• Authentication method

Fingerprint / Card / Password (Physical Keypad)

• Fingerprint Capacity

500 (1:N) (Standard)

• Card Capacity

500 (1:N) (Standard)

• User Capacity

500 (1:N) (Standard)

• Transaction Capacity

100,000 (1:N) (Standard)

• Max. User Password Length

6 Digits

• Biometric Authentication Speed

less than 1.5 sec (Fingerprint)

• False Acceptance Rate (FAR) %

FAR < 0.0001% (Fingerprint)

• False Rejection Rate (FRR) %

FRR <0.1% (Fingerprint)

• Biometric Algorithm

ZKFingerprint V13.0

• Card Type

ID Card@125 kHz (Standard)
IC Card@13.56 MHz (Optional)

• Standard Functions

DST, Up to 14-digit User ID, Record Query, Automatic Status Switch, Multiple Authentication Methods, T9 Keyboard (Input), Online Firmware Upgrade

• Optional Functions

IC Card

• Power Supply

DC 5V 2A

• Operating Temperature

0°C to 45°C

• Operating Humidity

20% to 80% RH (Non-condensing)

• Dimensions

135.5 mm * 118.23 mm * 35.95 mm (L*W*H)

• Gross Weight

0.245 Kg

• Supported Software

Mobile App: ZKBio Zlink
Cloud-based Software: ZKBio Zlink

• Installation

Wall-mount (Compatible with Asian Gang-box / Single Gang-Box)

• Certifications

ISO14001, ISO9001, CE, FCC, RoHS

SenseFP M1_Datasheet_20250415
